Unit tests

Host unit tests with CTest and Unity

CTest tests, including Unity cases, appear in the Testing view under Embedded Unit Tests, one entry per test, and can be rerun one at a time. A failure shows at its line. The module reads CTest's JSON and JUnit XML.

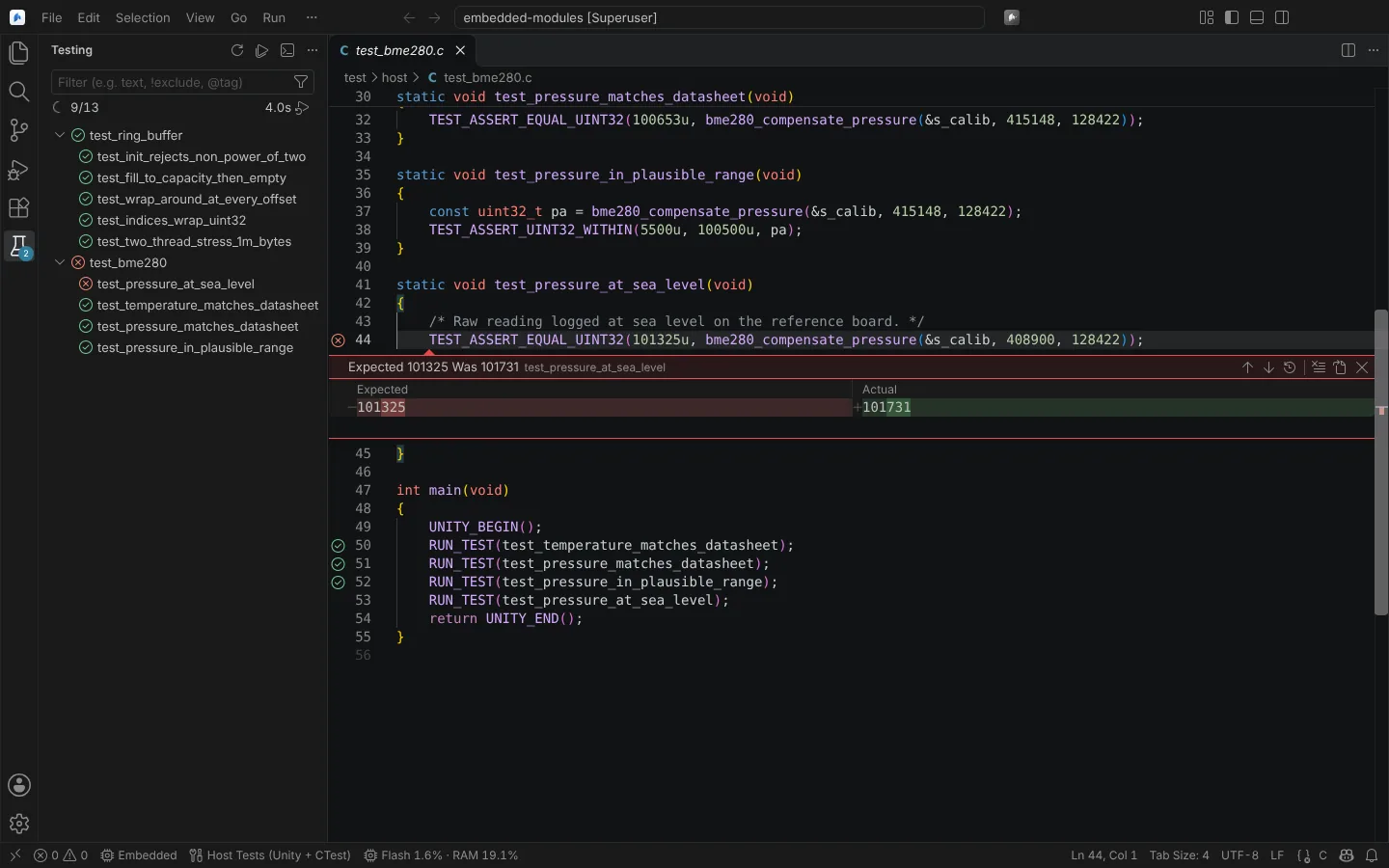

CTest and Unity cases in the Testing view, with a failed assertion shown at its line.

For a project laid out like the reference firmware:

cmake --preset host-tests && cmake --build --preset host-tests && ctest --preset host-tests --output-on-failure

• Verified: unit tests on CTest JSON and JUnit XML fixtures.
• Not verified: any CTest version in a real run; Windows (the integration test skips there).

Unity tests on IAR's C-SPY simulator or the target

For IAR projects, each test configuration of the .ewp (such as UnitTest or HardwareInLoop) appears in the Testing view under IAR C-SPY Tests, with its Unity cases.

1. Run a configuration from the Testing view.
2. The module builds it with iarbuild first, then runs the test image with IAR's cspybat.
3. On the C-SPY simulator the run starts directly. On the target, a confirmation first names the target, the probe and its C-SPY driver, the image with its size and SHA-256, and the flash loader, and says that C-SPY programs the flash and runs the tests until they end or the time-out passes.
4. Results appear per test: passed, failed with the expected and actual values at the assertion's line, or ignored with its message.

The cspybat command line comes from the configuration's settings/*.xcl files, which Embedded Workbench writes, or, for the simulator, from files composed from the project's .ewd and .ewp. Each run runs the whole test image; continuous runs are not offered.

State: unit-tested on Linux on Embedded Workbench 7.4, 8.1 and 8.3 files from public projects, and on the command forms in IAR's CMake tutorial. Not yet run against cspybat on any operating system, simulator or probe (kit iar-keil-build). Runs on a probe need the .xcl files Embedded Workbench writes.

IAR C-RUN runtime analysis

With an IAR C-RUN licence, the C-SPY test runs can check the code at run time for arithmetic errors, bounds errors and heap errors.

1. Run Configure IAR C-RUN Runtime Checking.... A list shows each C-RUN check of the test configuration, as stored in the project's .ewt file (RuntimeChecking), with IAR's name for it: C-RUN runtime checking, integer overflow, integer conversion, integer shift overflow, unhandled switch case, division by zero (and their unsigned and explicit-cast variants), bounds checking, and the checked heap.
2. Choose the checks. A confirmation names the file and each change, repeats IAR's advice where it applies (for example not to use bounds checking and the checked heap together), and says that only these values change and that the next build instruments the code.
3. Run the tests. C-RUN messages go to Problems at their line, with the call stack below each message, under the source IAR C-RUN.

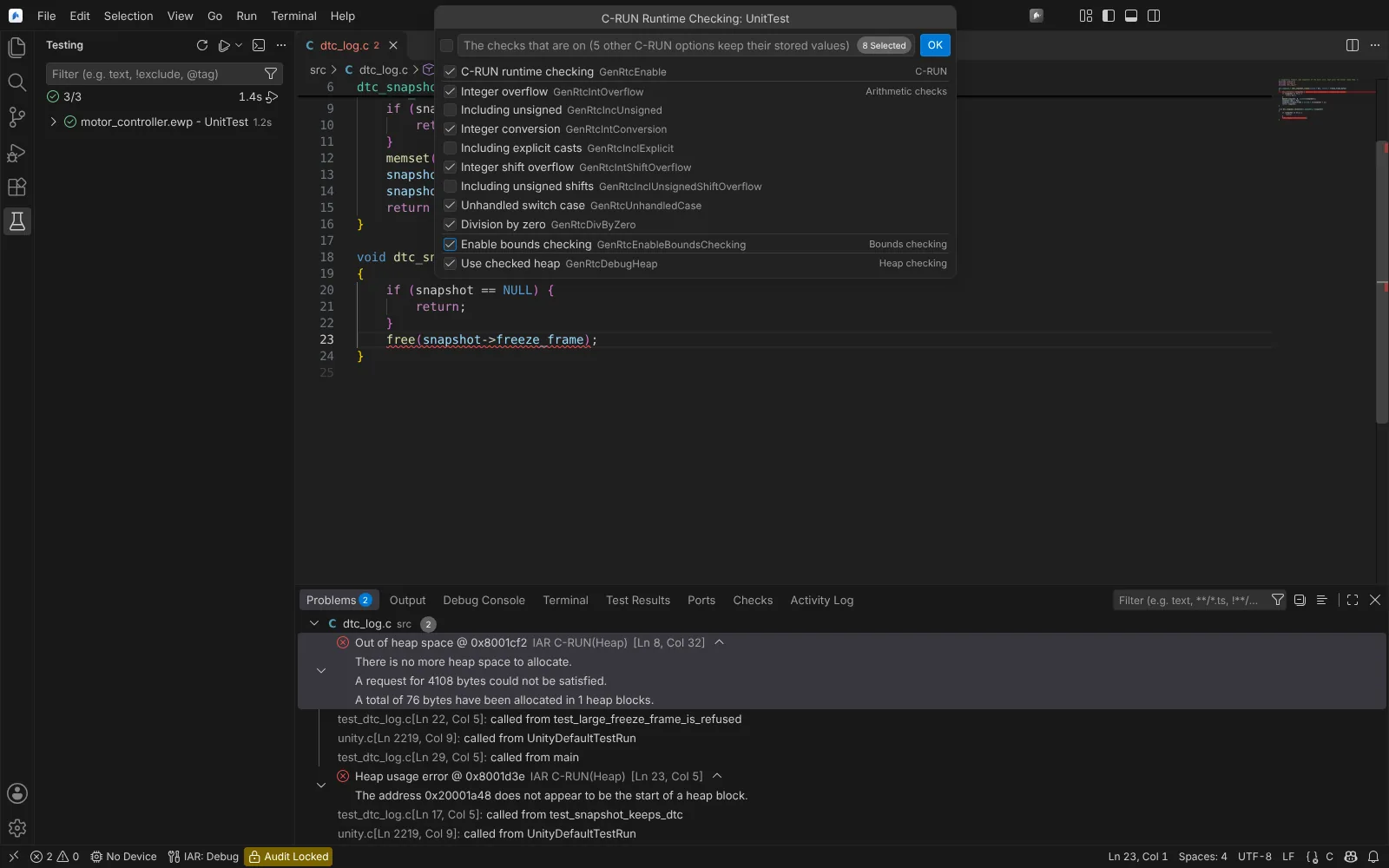

The C-RUN Runtime Checking list of the UnitTest configuration with the checks that are on, and two C-RUN heap errors in Problems with their call stacks.

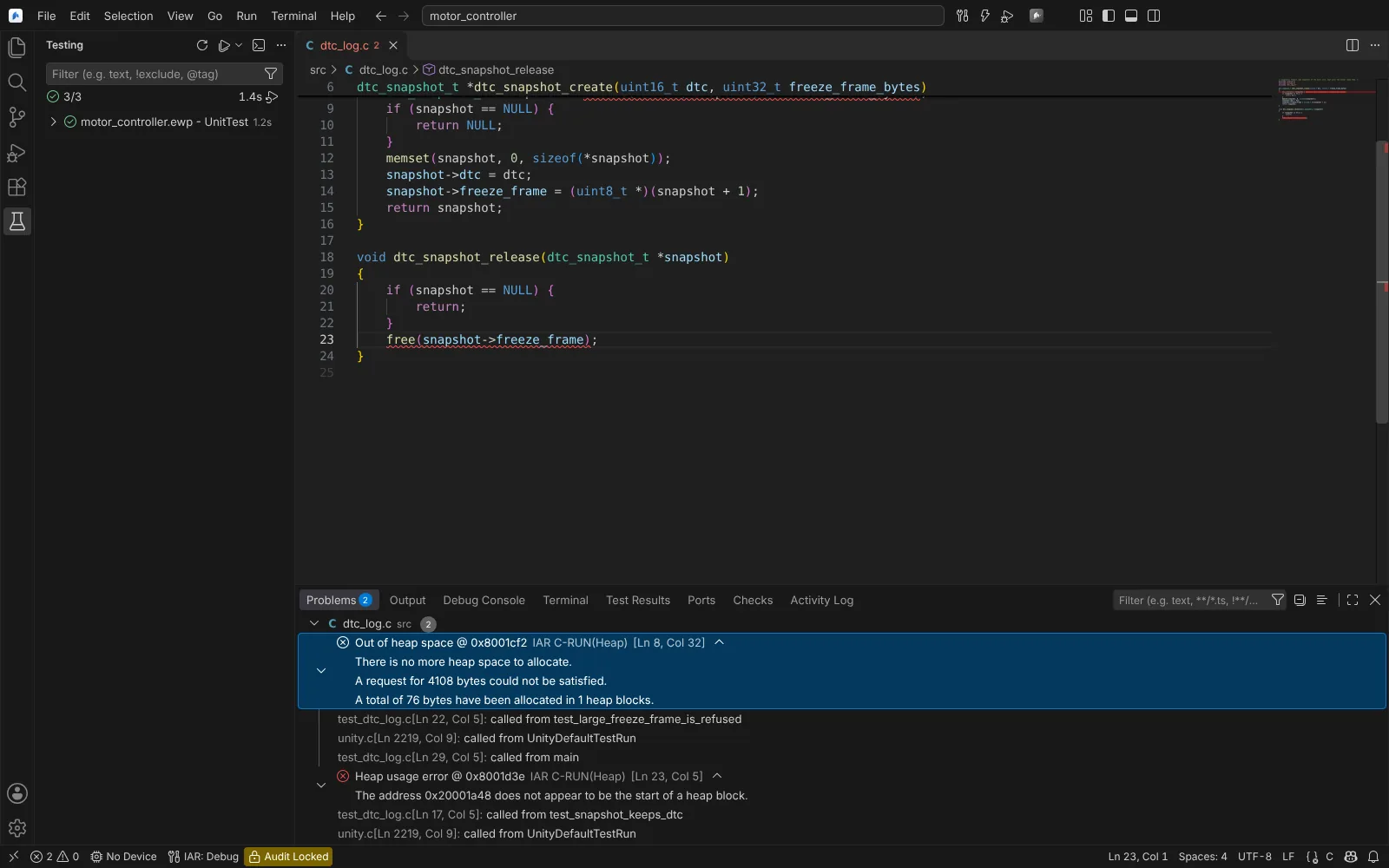

IAR C-RUN heap errors in Problems with their call stacks, after a unit test run.

State: verified on Linux on IAR's own C-RUN evaluation projects for reading and changing the options (one state changed; an unchanged save byte-identical); the message reader on output in the form of IAR's published cspybat V9.5.3 output; Electron rendering; the running app with stand-in iarbuild and cspybat. Not yet run against cspybat or Embedded Workbench with a C-RUN licence (kit iar-keil-build). The --rtc_enable option is unverified, message names other than "Heap usage error" and "Out of heap space" have not been seen, and five .ewt options are read-only.

Agents

Agents can list and run C-SPY tests (List IAR C-SPY Tests, Run IAR C-SPY Tests), and read and change C-RUN options, read C-RUN messages and export the report. Running tests and changing options run only after you confirm; a run on the target names the probe that programs its flash.
